INCLUDED ACCESSORIES
Remote diagnostics through modem, Processing statistics, Possibility to set the products outputs according to fruit number or weight
CENTRAL DISCHARGE GRADING SYSTEMS
Logika central discharge grading system is ideal solution for medium-high production rates

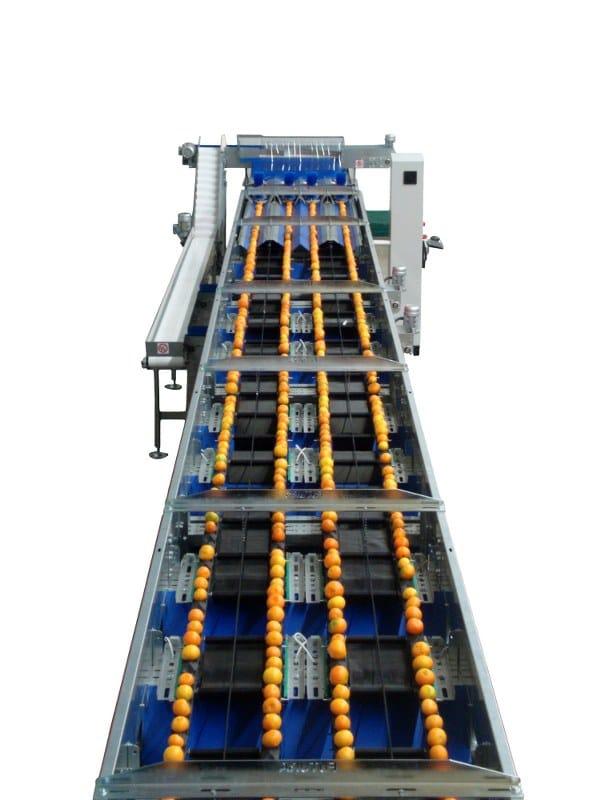

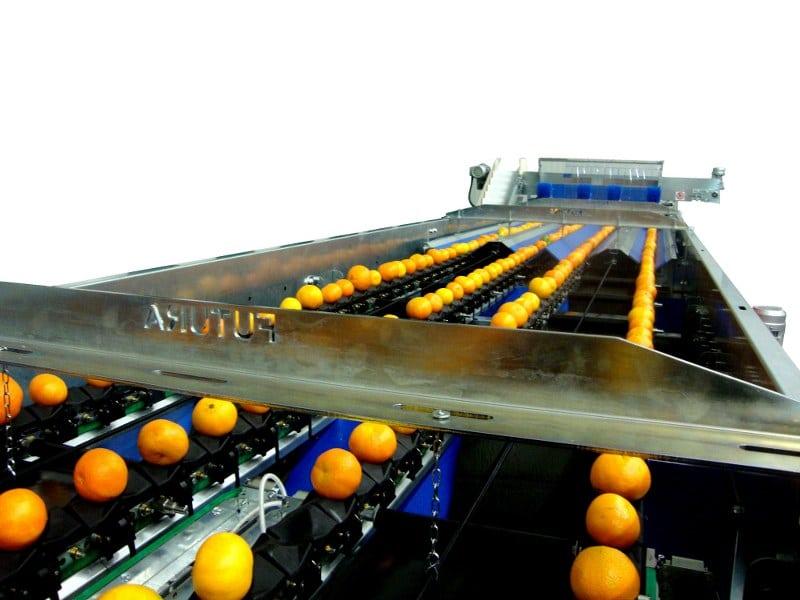

LOGIKA CENTRAL DISCHARGE SYSTEM
Our grading system LOGIKA Central Discharge is the ideal solution for medium-high production rates
Logika Central Discharge can efficiently grade and sort any fruit and vegetable.
Thanks to its simplicity, durability and low maintenance costs, Logika is the ideal partner for your business. Infact, it offers the possibility to work with a number of lines that can vary from 2 to 8 (in pairs).
The optimal filling rate of our trolleys, which is up to 90-95%, guarantees a very high production capacity. Like any grading system by Futura, Logika Central Discharge caters to a wide range of needs.
The flexibility of this line, the attention to the details and the high-quality materials employed ensure a top-quality performance and the gentlest handling of your fruits
GRADERS CUSTOMIZATION
Like all of our grading systems, Logika Central Discharge can be adjusted to your needs.
The flexibility of this line, the attention to the details, the high-quality materials and the advanced technologies employed ensure a top-quality performance and the most gentle handling of your fruit
FURTHER ACCESSORIES
Labeling machine control, Remote diagnostics through modem, interfacing with traceability system, automatic device for trolley washing and cleaning, Auto speed setting based on machine capac
SOME CHARACTERISTICS
SUPPLY

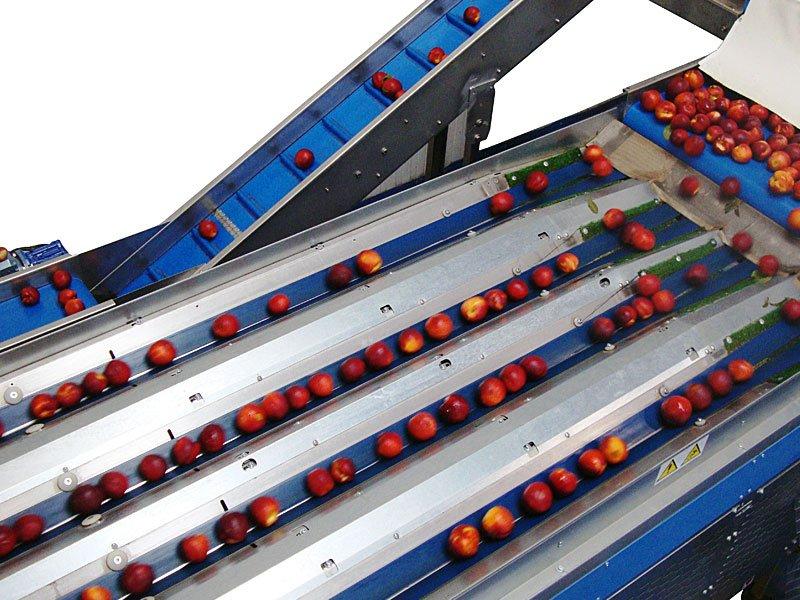

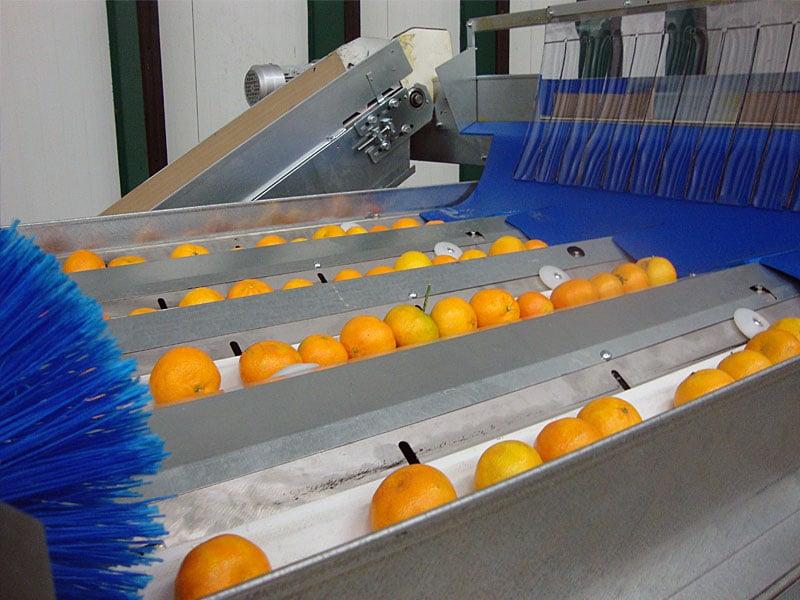

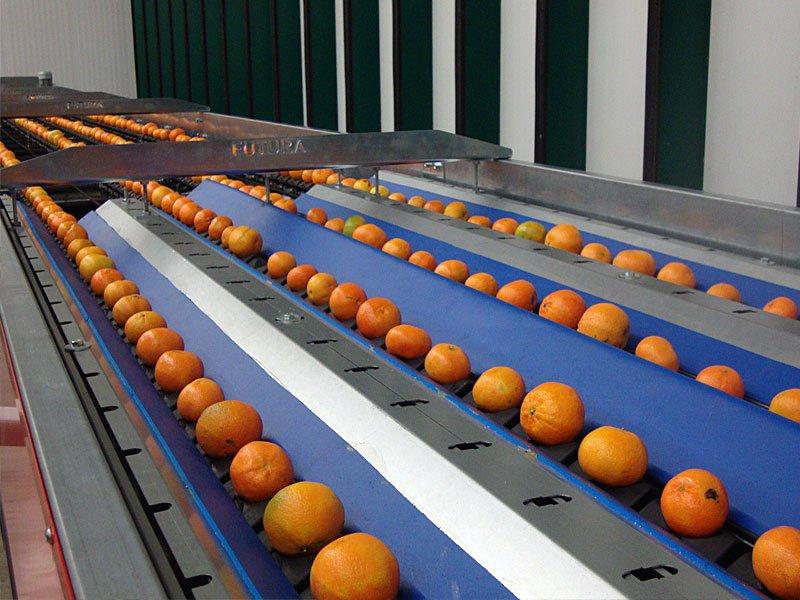

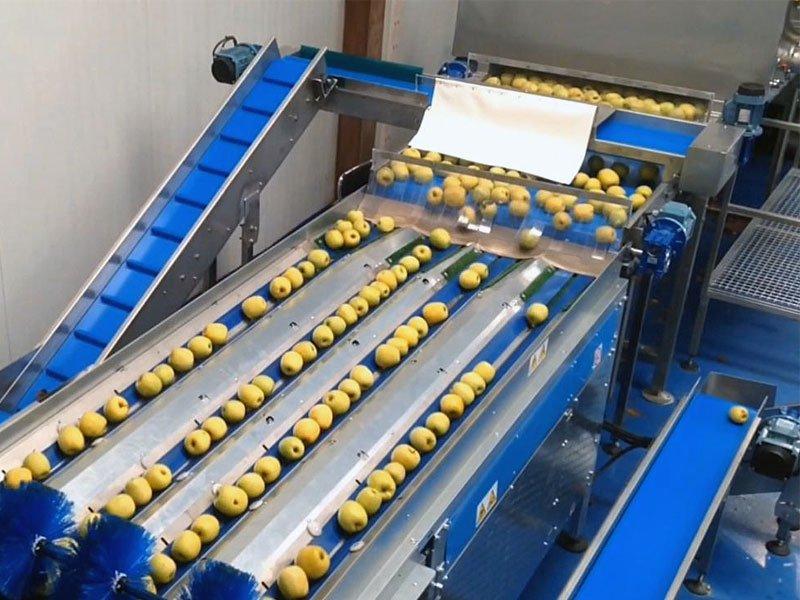

Synchronized feeding through pre-aligning, V shaped conveyor belts
LINE FILLING
Automatic singulation system that offers an optimal line filling (up to 90%), even with non-spherical products such as flat peaches, avocados, bell peppers
NUMBER OF LINES
From 2 to 8 grading lines

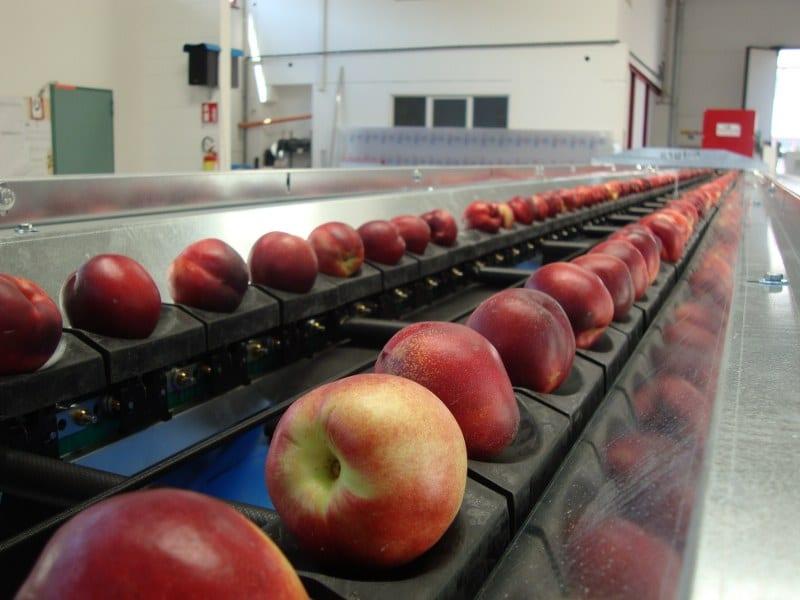

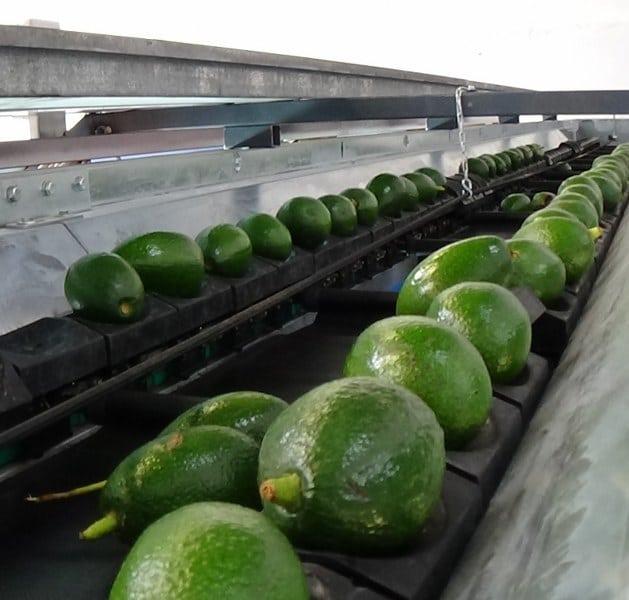

TROLLEYS
Range of trolleys suited for every kind of fruit/vegetable
ROLLERS
Range of rollers suited for every kind of fruit/vegetable
FOOD CERTIFIED
Certified food contact materials
ACCURACY
Reading of minimum, maximum and medium weight. Medium accuracy +/- 1 gr
GRADING TYPE
Optical reading of diameter, colour, shape and volume
TECHNICAL FEATURES
GRADING PARAMETERs
Weight, Diameter, Colour and External quality
WORKABLE PRODUCE PARAMETERS
Apples, Pears, Citrus Fruits, Peaches, Flat Peaches, Mangos, Apricots, Avocados, Dragon Fruits, Kiwis, Persimmons, Dates, Plums, Melons, Pomegratanes, Tomatoes, Garlic, Onions, Bell-Peppers, Potatoe, Diameter, Colour and External quality
TROLLEYS PITCH
76 mm, 95 mm, 114 mm , 152 mm
ROLLERS PITCH
76 mm, 90 mm, 114 mm
NUMBER OF WORKING LINES
2, 4, 6, 8
WORKING
From 12 to 15 fruits/sec/line
TYPE OF DISCHARGE
CENTRAL on a belt by the use of brushes or flaps
